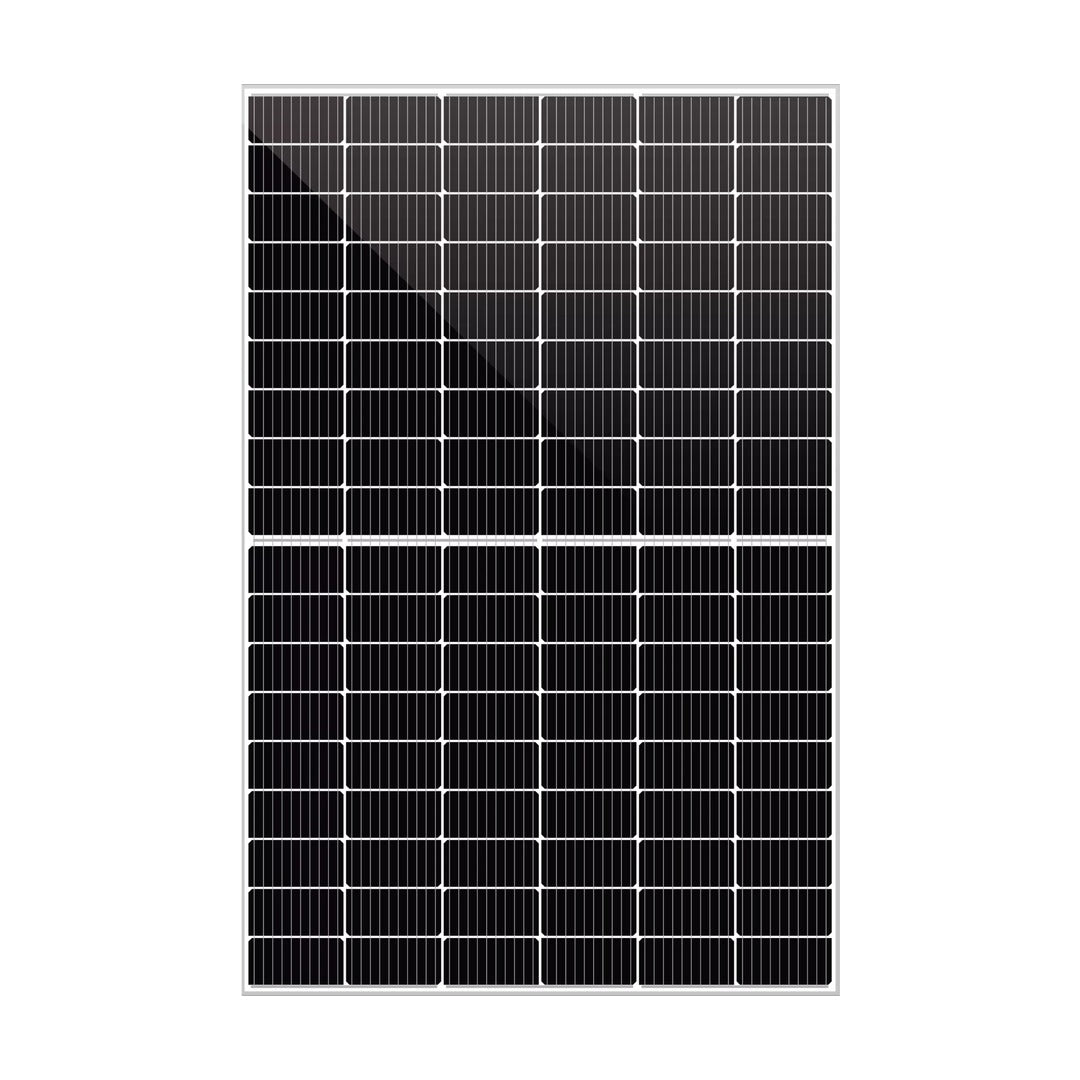

SUNTECH PV module 410W 1724x1134x30 P-type monofacial

Highly efficient and reliable solar panel from the seriesUltra V MinionSUNTECH– an established global manufacturer of photovoltaic solutions. The modelSTP410S-C54/Umhm PERCcombineP-type monocrystalline half-cell technologywith excellent energy density and stable longevity, ensuring maximum yield with minimal losses.

SUNTECH STP410S-C54/Umhmissingle crystal monofacialpanel created with182 mm PERC half-celltechnology that improves system efficiency and reliability.
The module is optimized for roof and ground installations - the compact size1722 × 1134 × 30 mmand low weight make it easy to install, transport and integrate into different types of solar systems.

Advantages:

• PERC half-cell technology– higher efficiency and lower internal losses.

• Flexible and compact design– ideal for rooftop and small commercial systems.

• Lower operating temperature– increased yield in hot climates.

• Excellent low light performance– stable production in the morning, evening and in cloudy weather.

• Durability under harsh conditions– certified for wind loads up to 2400 Pa and snow loads up to 5400 Pa.

• High reliability– used high quality materials and IP68 protected connectors.

• Compatible with all standard on-grid and hybrid inverters.

Warranty:

✔️ 25 year product warranty
✔️ 25 year linear power warranty
➡️ Initial degradation ≤ 2%, then ≤ 0.55% per year
➡️ Retained power:84.8% after 25 years of operation

Certificates and standards:

IEC 61215 / 61730 / UL790 Fire Class C
ISO 9001 / ISO 14001 / ISO 45001 / SA8000 / TS 62941
Certified byTÜV, CE, Munich REand included inBloomberg Tier 1ranking for reliable manufacturers.

Packaging and Shipping:

• 36 panels per pallet

• 26 pallets in a 40' HC container (936 modules total)

• Pallet size: 1755 × 1120 × 1255 mm

• Pallet weight: 794 kg

Applications:

✔️ Residential solar systems
✔️ Commercial and office roofs
✔️ Industrial photovoltaic installations
✔️ Off-grid and hybrid solutions

SUNTECH STP410S-C54/Umhm PERCis versatile, highly effective and long-lastingP-type monocrystalline panel, offering an excellent balance between power, price and reliability.
He guaranteeshigh performance, low degradation and sustainabilityof the environment - an ideal choice for modern solar systems that require proven quality and stability throughout the life cycle.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main features:

✅ Cell type:Monocrystalline 182 mm, P-type PERC Half-Cell
✅ Rated power: 410 W
✅ Module efficiency:up to 21.0%
✅ Operating Voltage (Vmp): 31.59 V
✅ Operating current (Imp): 12.98 A
✅ Open Circuit Voltage (Voc): 37.45 V
✅ Short circuit current (Isc): 13.88 A
✅ Temperature power factor (Pmax): -0.34% / °C
✅ Voltage Temperature Coefficient (Voc): -0.26% / °C
✅ Current Temperature Coefficient (Isc): +0.05% / °C
✅ Operating temperature: -40°C ~ +85°C
✅ Rated temperature (NMOT): 42 ± 2°C
✅ Maximum system voltage: 1500 V DC
✅ Permissible fuse current: 25 A
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: 21.0 kg
✅ Windscreen:3.2 mm hardened, with anti-reflective coating
✅ Frame:Aluminum, anodized
✅ Junction Box:IP68, with three bypass diodes
✅ Connectors:Suntech STP-XC4-4 (standard) / Staubli PV-KST4-EVO2A (option)
✅ Mechanical resistance:2400 Pa (wind) / 5400 Pa (snow)
