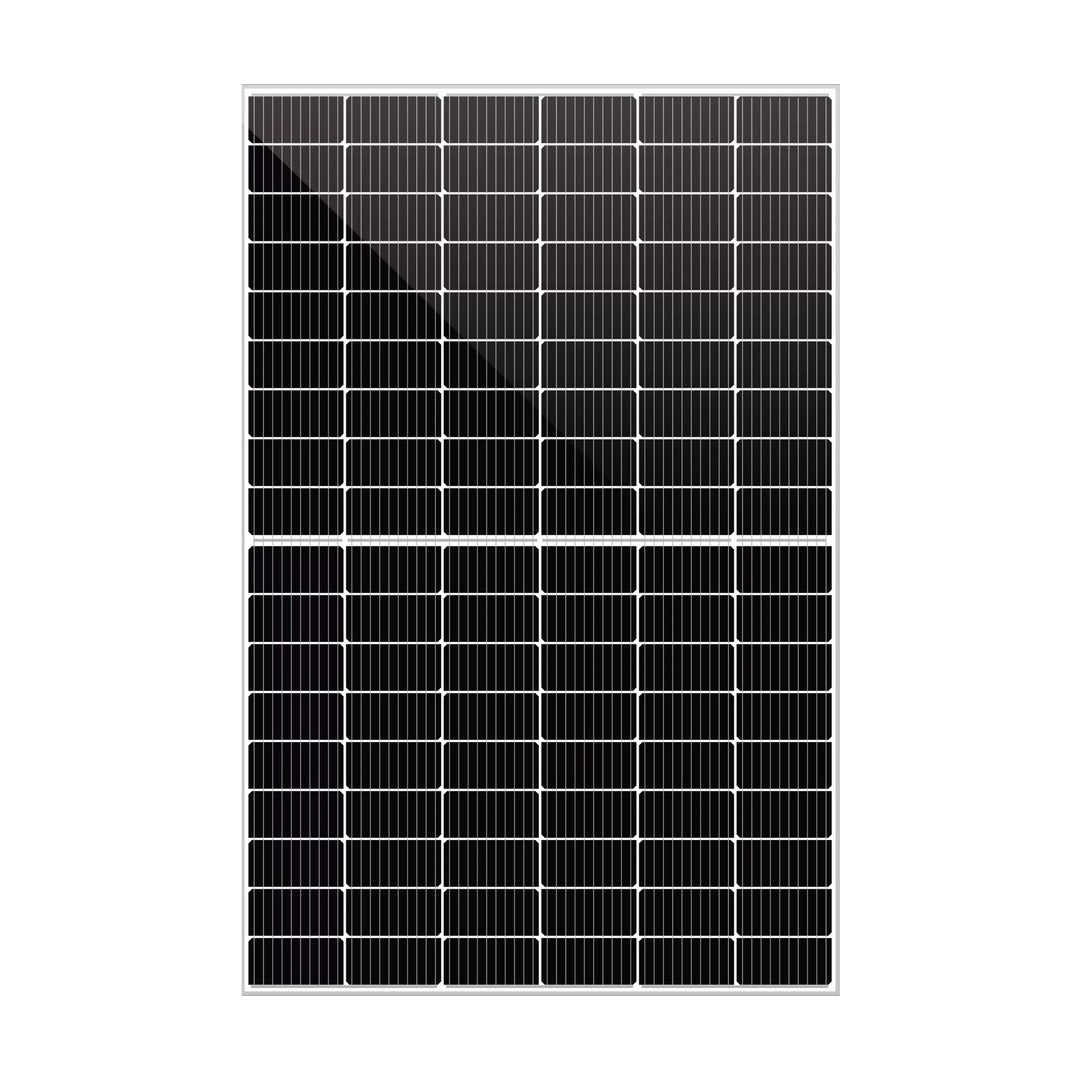

SUNTECH PV module 415W 1722x1134x30 N-type monofacial

The latest generation of photovoltaic modules in the seriesUltra V Pro MinionSUNTECH, combining high efficiency, long life and advancedN-Type TOPContechnology. An ideal solution for residential, commercial and industrial solar systems requiring maximum performance in a compact format.

SUNTECH STP415S-C54/Nshkm+issingle crystal monofacialpanel withN-Type TOPCon cells and half-cell architecture, created for higher energy efficiency and lower degradation over time.
Thanks tomultibusbar (MBB)technology and high-quality materials, the module provides excellent low-light performance and durability in harsh climates.

Advantages:

• High efficiency up to 22.3%(Ultra V Pro Mini series) – thanks to advanced N-Type TOPCon cell technology.

• Minimal degradation– first year ≤ 1%, then only ≤ 0.40% per year.

• Better performance in low light– excellent productivity in cloudy weather, morning and evening.

• Lower operating temperature– optimized temperature coefficient for maximum yield.

• Multibusbar technology (MBB)– improved conductivity and higher reliability.

• Ammonia, salt spray and dust resistance– certified according to IEC 62716, 61701 and 60068-2-68.

• High mechanical durability– tested for loads up to 5400 Pa.

Warranty:

✔️ 25 year product warranty
✔️ 30 year linear power warranty
➡️ First year degradation ≤ 1%, then ≤ 0.40% per year, until maintaining87.4% powerafter 30 years.

Certificates and standards:

IEC 61215, IEC 61730, IEC 61701 (Salt Mist), IEC 62716 (Ammonia), IEC 60068-2-68 (Dust & Sand), UL790 Fire Class C, ISO 9001 / 14001 / 45001 / SA8000, TS 62941.
Certified for high resistance and safety in all climatic zones - from coastal areas to desert and agricultural environments.

Packaging and Shipping:

• 36 panels per pallet

• 26 pallets in a 40' HC container (936 modules total)

• Pallet size: 1755 × 1120 × 1255 mm

• Pallet weight: 794 kg

Applications:

✔️ Residential solar systems
✔️ Commercial and office buildings
✔️ Industrial installations and photovoltaic parks
✔️ Hybrid and off-grid systems with high energy density

SUNTECH STP415S-C54/Nshkm+ Ultra V Pro Miniis built for the future - high efficiency, stable longevity and minimal degradation.
This oneN-Type TOPCon panelguarantees an excellent return on investment and maximum performance in all conditions – a reliable and sustainable solution for the modern solar installations of the 21st century.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main features:

✅ Cell type:N-Type monocrystalline (TOPCon) – 182 mm Half-Cell
✅ Rated power: 415 W
✅ Module efficiency:up to 21.3%
✅ Operating voltage: 31.78 V
✅ Operating current: 13.06 A
✅ Open Circuit Voltage (Voc): 38.33 V
✅ Short circuit current (Isc): 14.01 A
✅ Temperature power factor (Pmax): -0.29% / °C
✅ Voltage Temperature Coefficient (Voc): -0.25% / °C
✅ Current Temperature Coefficient (Isc): +0.046% / °C
✅ Operating temperature: -40°C ~ +85°C
✅ Rated Operating Temperature (NMOT): 42 ± 2°C
✅ Maximum system voltage: 1500 V DC
✅ Permissible fuse current: 25 A
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: 21.0 kg
✅ Windshield:3.2 mm hardened, with anti-reflective coating
✅ Frame:Aluminum, anodized
✅ Junction Box:IP68, 3 bypass diodes
✅ Connectors:Suntech STP-XC4-4 (standard) / Staubli PV-KST4-EVO2A (option)
✅ Mechanical resistance:2400 Pa (wind) / 5400 Pa (snow)
