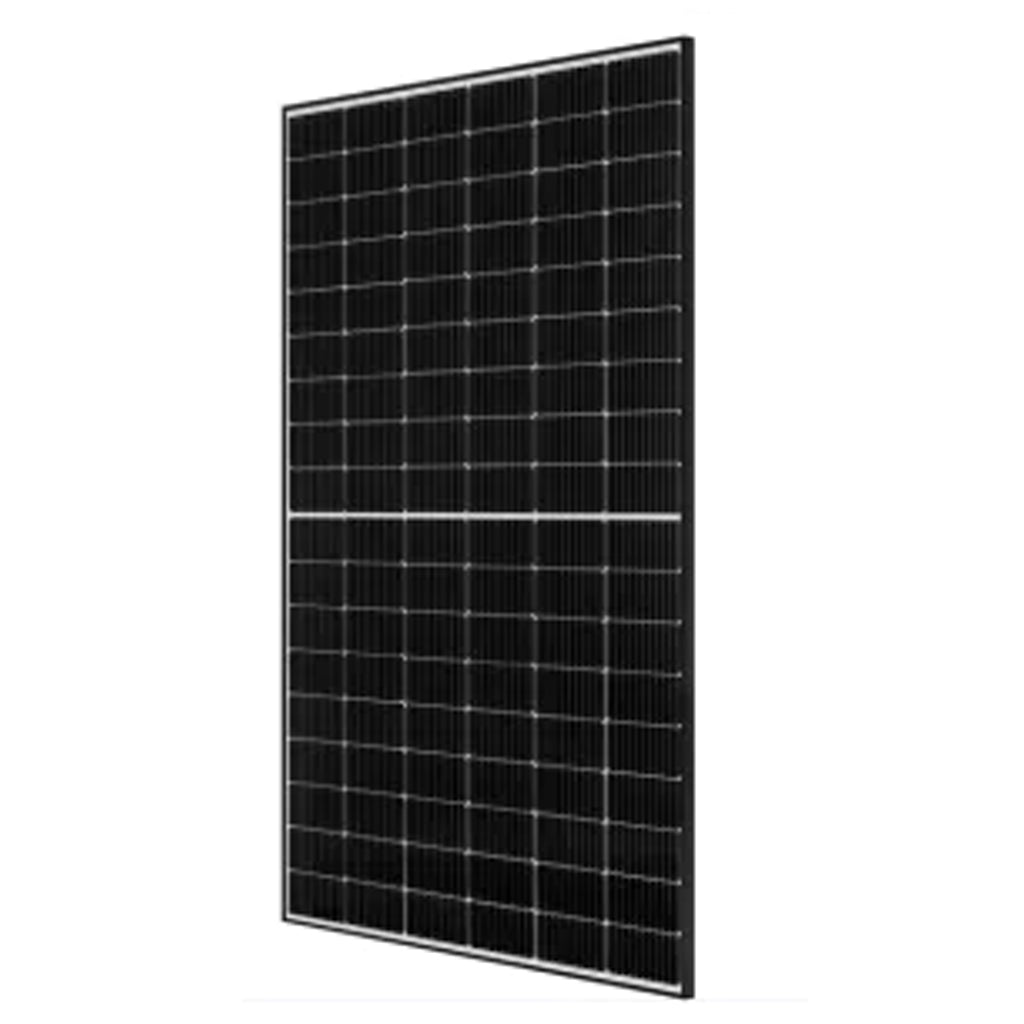

SUNTECH PV module 420W 1722x1134x30 N-type monofacial (Black Frame)

High efficiency photovoltaic module from the seriesUltra V Pro Mini, designed with innovativeN-Type TOPCon technologyfor maximum efficiency, durability and excellent performance under real conditions. An ideal choice for residential, commercial and industrial solar systems where reliability and long-term efficiency are key.

SUNTECH STP420S-C54/Nshkm+issingle crystal monofacialsolar panel withhalf-cell (Half-Cell)andN-Type TOPContechnology designed to provide high energy density and minimal degradation over time.
Thanks tomultibusbar structure (MBB)and advanced surface passivation, the module ensures better light capture, higher current and excellent stability at high temperatures.

Advantages:

• N-Type TOPCon technology– higher efficiency, less degradation and better resistance to PID and LID effects.

• Multi-Busbar Design (MBB)– increased reliability and better current flow.

• Excellent low light performance– high performance even in cloudy weather, morning and evening.

• Lower operating temperature– higher stability and less loss at high heat.

• High mechanical strength– certified for loads up to 5400 Pa (snow) and 2400 Pa (wind).

• Enhanced environmental sustainability– protection against salt spray, ammonia, dust and sand (IEC 61701, IEC 62716, IEC 60068-2-68).

• Compatible with all standard mounting and inverter systems.

Warranty:

✔️ 25 year product warranty
✔️ 30 year linear power warranty
➡️ Initial degradation ≤ 1%, then ≤ 0.40% per year.
➡️ Retained power:87.4% after 30 years of operation.

Certificates and standards:

IEC 61215 / 61730 / 61701 / 62716 / 60068-2-68 / UL790 (Fire Class C)
ISO 9001 / ISO 14001 / ISO 45001 / SA8000 / TS 62941
Certified by independent institutions (TÜV, CE, Munich RE, Bloomberg Tier 1).

Packaging and Shipping:

• 36 panels per pallet

• 26 pallets in a 40' HC container (936 modules total)

• Pallet size: 1755 × 1120 × 1255 mm

• Pallet weight: 794 kg.

Applications:

✔️ Residential and commercial solar installations
✔️ Industrial roofing systems
✔️ Solar parks and hybrid projects
✔️ Off-grid and energy storage systems

SUNTECH STP420S-C54/Nshkm+ Ultra V Pro Miniis premiumN-Type TOPCon module, offering an optimal balance between power, efficiency and durability.
Built for decades of stable performance, this panel guaranteeshigh yield, low losses and reliability, even in the harshest climatic conditions — an ideal choice for modern energy systems with long-term returns.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main features:

✅ Cell type:N-Type monocrystalline (TOPCon), Half-Cell 182 mm
✅ Rated power: 420 W
✅ Maximum efficiency:up to 21.6%
✅ Operating Voltage (Vmp): 31.96 V
✅ Operating current (Imp): 13.14 A
✅ Open Circuit Voltage (Voc): 38.46 V
✅ Short circuit current (Isc): 14.09 A
✅ Temperature power factor (Pmax): -0.29% / °C
✅ Voltage Temperature Coefficient (Voc): -0.25% / °C
✅ Current Temperature Coefficient (Isc): +0.046% / °C
✅ Operating temperature: -40°C ~ +85°C
✅ Rated temperature (NMOT): 42 ± 2°C
✅ Maximum system voltage: 1500 V DC
✅ Permissible fuse current: 25 A
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: 21.0 kg
✅ Windshield:3.2 mm hardened, with anti-reflective coating
✅ Frame:Black anodized aluminum frame - for a sleek and modern look
✅ Junction Box:IP68, with 3 bypass diodes
✅ Connectors:Suntech STP-XC4-4 (default) / Staubli PV-KST4-EVO2A (option)
✅ Load resistance:2400 Pa (wind) / 5400 Pa (snow)
