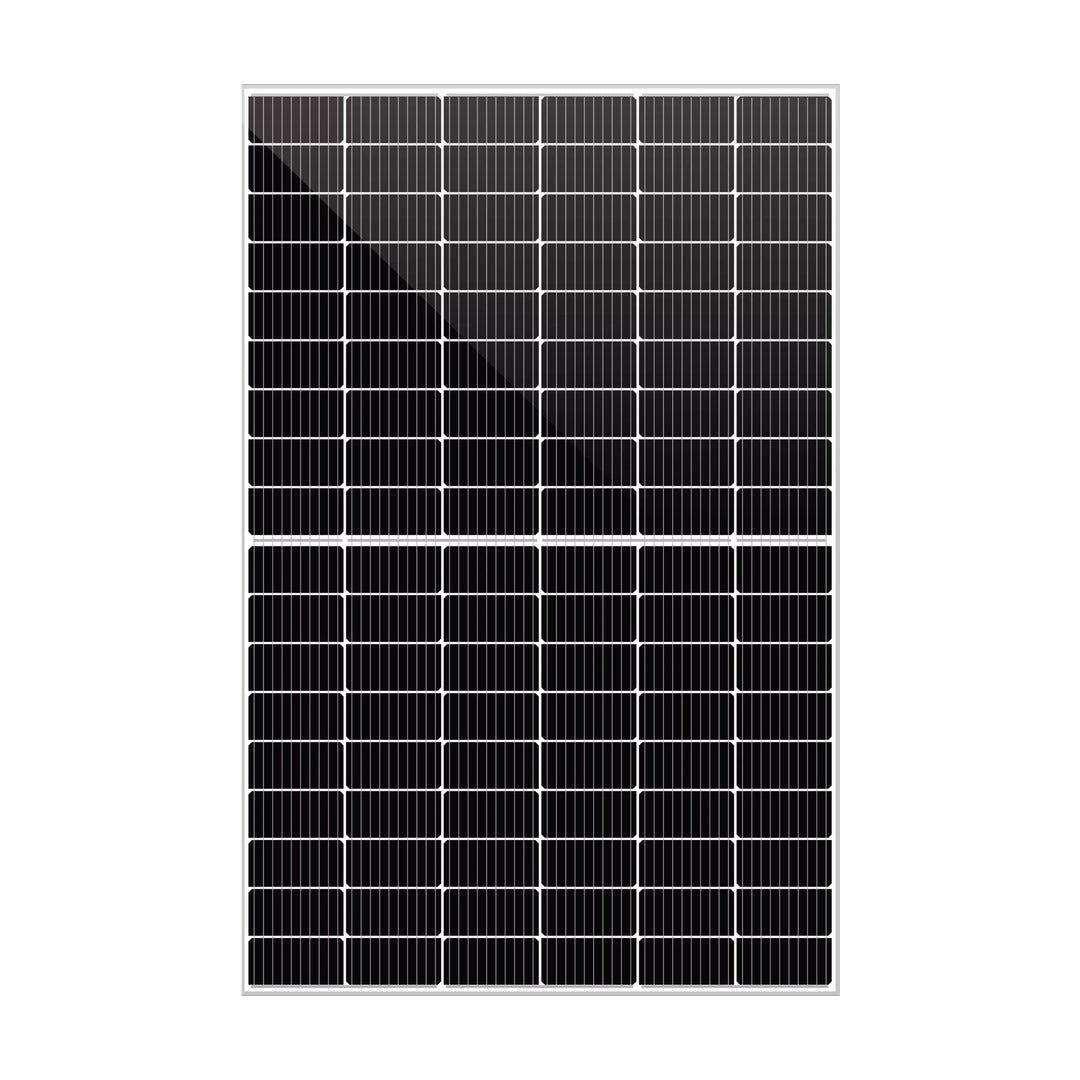

Suntech Ultra V Pro STP580S-C72/Nsh+ – N-Type TOPCon Bifacial Half-Cell Solar Panel | 580 W | 22.5% efficiency | 30 year linear warranty

Suntech Ultra V Pro STP580S-C72/Nsh+ishigh-performance N-Type TOPCon double-sided Half-Cell panelof the latest generation, designed forcommercial, industrial and large scale PV systems.
With a nominal power of 580 W and an efficiency of 22.5 %, the panel provides higher energy yield, lower degradation and longer service life compared to traditional P-type modules.

The technologyN-Type TOPConoffers excellent resistance to PID and LID effects, aThe Half-Cell Designreduces losses and increases productivity in partial shading.
Thanks tothe two-faced (bifacial) architecture, the panel optimizes yield by capturing light from the back side – up to +25% additional energy

Key benefits

• N-Type TOPCon technology– high efficiency, low degradation, longer life.

• Half-Cell design– lower currents, lower losses and higher stability.

• Bifacial Design– up to +25% additional yield from reflected light.

• Multi-Busbar Structure (MBB)– higher mechanical resistance and better current collection.

• Excellent low light performance– effective even in cloudy weather, morning and evening.

• Mechanical durability:

  • Snow up to 5400 Pa

  • Wind up to 2400 Pa

• Suitable for extreme conditions– deserts, coastal areas, farms.

• Anti-PID and Anti-LID protection- durability in long-term operation.

• Compatible with 1500 V DC inverter systems– reduces BOS costs.

Temperature characteristics

• Pmax: –0.30 % / °C

• Voc: –0.25 % / °C

• Isc: +0.046 % / °C

• NMOT: 42 ± 2 °C

Warranty

• 15 year product warranty

• 30 year linear performance warranty:

  • ≤ 1 % degradation in the first year

  • ≤ 0.40 % annual degradation thereafter

  • ≥ 87.4 % residual power after 30 years

Certificates

• IEC 61215 / IEC 61730

• CE / TÜV / ISO 9001 / 14001 / 45001 / SA 8000

• IEC 62716 (ammonia) / IEC 61701 (salt spray) / IEC 60068-2-68 (dust)

• IEC TS 62941 (guideline for quality design)

• Munich RE certified

Logistics information

• Carton size: 2310 × 1120 × 1255 mm

• Carton weight: ~1202 kg

• Number of panels per pallet:36 pcs.

• Number of panels in 40HQ container:720 pcs.

Suntech STP580S-C72/Nsh+ispremium N-Type TOPCon duplex panel, offeringhigh power, exceptional efficiency and up to 30 years of guaranteed performance.
A perfect choice for large PV installations that requiremaximum energy yield and minimum degradation over time.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

✅ Cell type: N-Type Monocrystalline TOPCon (182 mm)
✅ Configuration:144 cells (6 × 24) – Half-Cell, double-sided design
✅ Maximum power (Pmax): 580 W
✅ Efficiency: 22.5 %
✅ Operating Voltage (Vmp): 42.68 V
✅ Operating current (Imp): 13.59 A
✅ Open Circuit Voltage (Voc): 51.42 V
✅ Short circuit current (Isc): 14.32 A
✅ Temperature coefficient of Pmax: –0.30 % / °C
✅ Temperature Coefficient of Voc: –0.25 % / °C
✅ Temperature Coefficient of Isc: +0.046 % / °C
✅ Rated Operating Temperature (NMOT): 42 ± 2 °C
✅ Reference bifacial factor: 80 ± 5 %
✅ Maximum system voltage: 1500 V DC (IEC)
✅ Max. fuse: 25 A
✅ Power Tolerance: 0 ~ +5 W
✅ Dimensions: 2278 × 1134 × 30 mm
✅ Weight: 32 kg
✅ Front/rear glass:2 mm + 2 mm (hardened, semi-tempered)
✅ Box (J-Box):IP68 with 3 bypass diodes
✅ Connectors: STP-XC4
✅ Cables: 4 mm² (+) 160 mm / (–) 350 mm
✅ Operating temperature:–40 °C to +85 °C
