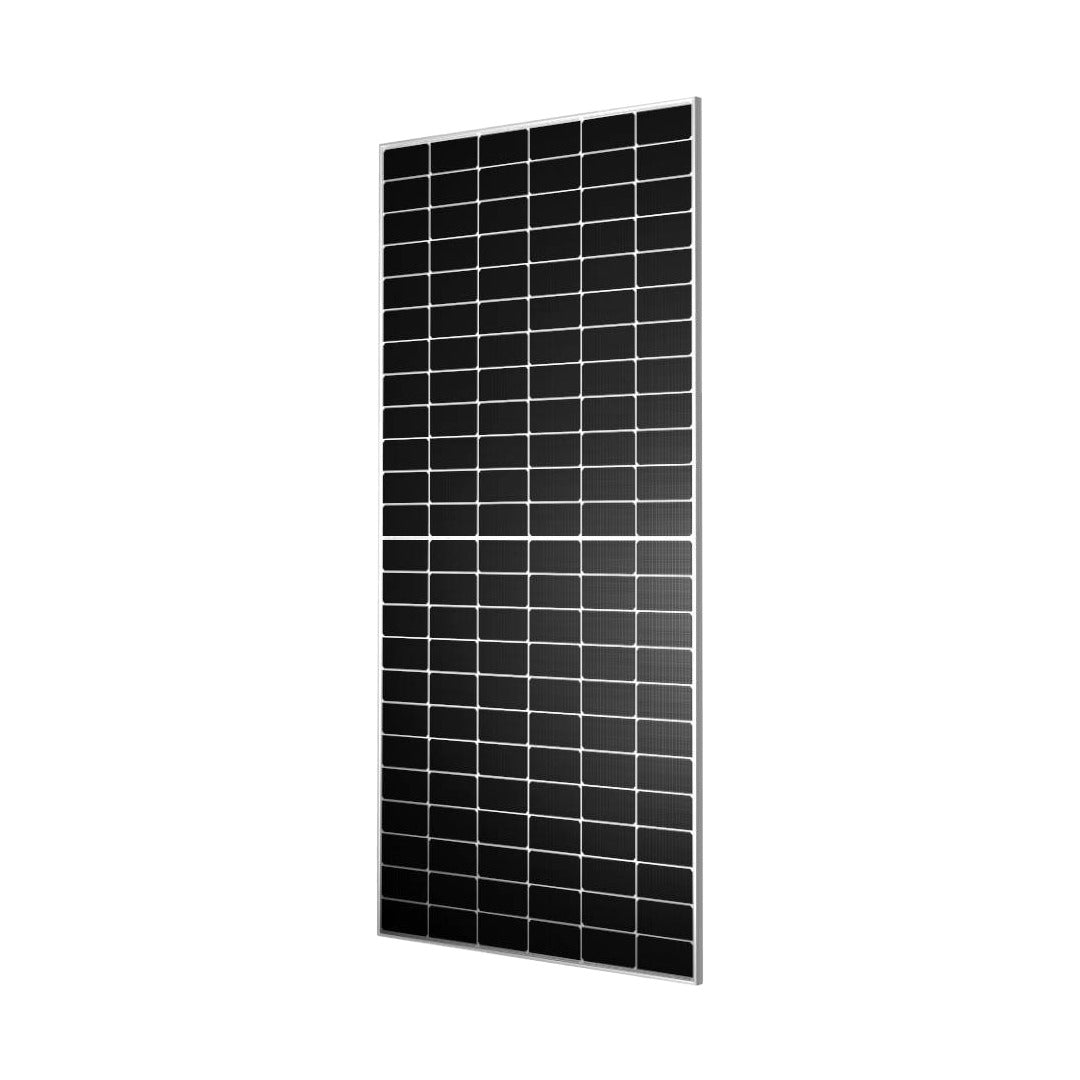

YH SUN PRO 585W | Bifacial | N-type TOPCon | Double glazing | Silver Frame | 30 years warranty

The photovoltaic moduleYH SUN PRO 585Wis highly efficientbifacial N-type solar panel, designed for commercial and industrial solar systems. By usingTOPCon technology, it offers lower degradation, higher efficiency and improved low-light behavior. The module is withdouble glass (glass-glass)andsilver aluminum frame– perfect for ground or roof installations with high durability requirements.

Temperature parameters:

Operating temperature:-40°C to +85°C
Pmax coefficient:about -0.30% / °C
Nominal Cell Operating Temperature (NOCT): ~45°C
Maximum system voltage: 1500 V DC
Max. fuse current: 30 A

Certificates and protections:

  IEC 61215 / IEC 61730 / CE / ISO
PID and LID protection
High resistance to salt, ammonia, hail
Suitable for marine and industrial environments

Advantages:

Bifacial technology:up to 25% extra energy
N-type cells:lower degradation, no LID
High power per m²– lower BOS price
30 year linear power warranty
25 year product warranty

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics:

✅ Power: 585 W
✅ Cell type:N-type single crystal TOPCon
✅ Number of Cells: 144 half-cut
✅ Dimensions:2279×1134×30mm
✅ Weight:~32 kg
✅ Glass:Double (front/back) - hardened, 2.0 mm
✅ Frame color:Silver (anodized aluminum)
✅ Connectors:MC4-compatible
✅ Cables:4 mm², 1300 mm
✅ Efficiency: ~22.5%
✅ Module Type:Bifacial (2-faced), up to 80% additional generation on the back side
